MODEL PS-62B
- For Pipe Sizes: 3/4″ – 2″
- Clamping Capacity: 18 Tons
- Dimensions: 28″ x 7″
- Shipping Weight: 29 pounds
Squeeze Tools
MODEL 5045T
- For Pipe Sizes: 3/4″ – 2″
- Clamping Capacity: 38 Tons
- Dimensions: 7-1/2″ x 20-1/2″
- Shipping Weight: 45 pounds
MODEL 5230T
- For Pipe Sizes: 3″ – 4″
- Clamping Capacity: 75 Tons
- Dimensions: 13-1/2″ x 32-1/2″
- Shipping Weight: 265 pounds
MODEL 7991T
- For Pipe Sizes: 6″ – 8″
- Clamping Capacity: 150 Tons
- Dimensions: 37″ x 56″
- Shipping Weight: 800 pounds

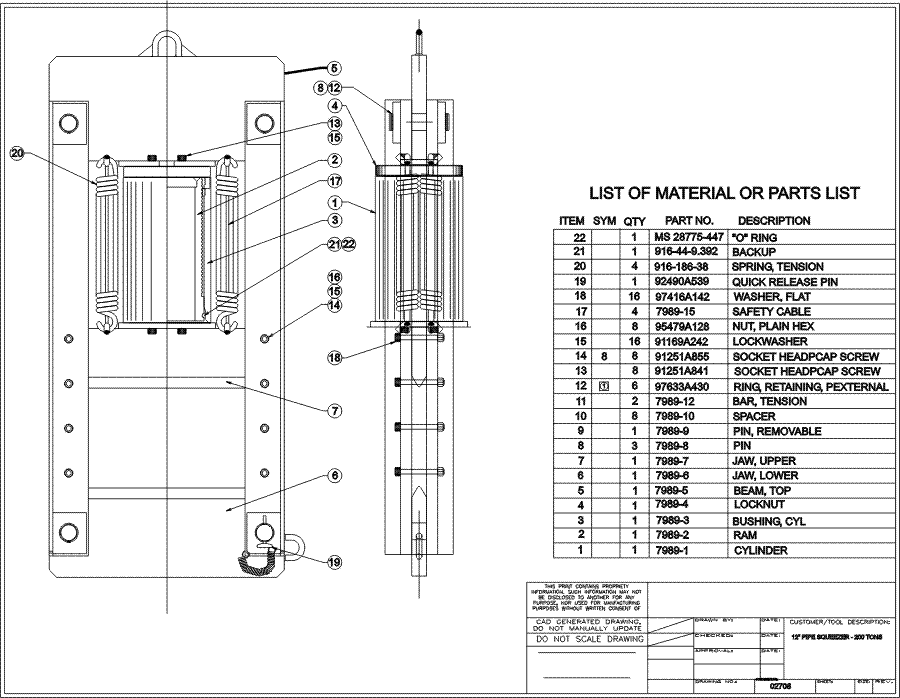

MODEL 7989T
- For Pipe Sizes: 10″ – 12″
- Clamping Capacity: 200 Tons
- Dimensions: 37″ x 73″
- Shipping Weight: 1,400 pounds
Pumps
MODEL 5336-020
- Portable Hydraulic Hand Operated
Pump with 2-Way Valve - Maximum Operating Pressure:
10,000 psi - 20-Foot Connection Hose
MODEL 5336-A20
- Portable Air Powered Hydraulic Single
Speed Pump with 2-Way Valve - Maximum Operating Pressure:
10,000 psi - 20-Foot Connection Hose
MODEL 16869
- Air Powered Hydraulic
Pump w/ 25’ Connection
Hose
New
24″ Squeeze Tool with clamping capacity up to 260 tons
This may be the largest squeeze tool ever made. The tool will handle up to 24″ IPS, (610mm) 0.312WT (7.9mm) pipe. Manufactured specifically for a customer, if we can provide a squeeze tool of this magnitude for them, we certainly should be able to handle the design and construction of any size tool for you. If we do not have an existing unit to meet your needs, please contact us with your specifications and we can build one to match your dimensional and clamp capacity requirements.
